Working principle:

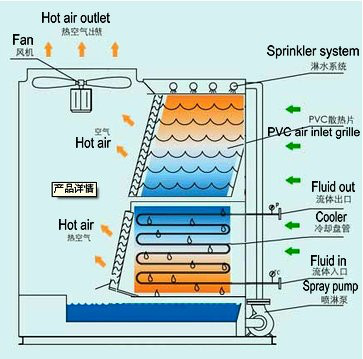

The working fluid (soft water or other liquid) coming out of the process equipment enters the cooling coil of the closed cooling tower. On the other hand, the water in the cooling tower tank is sucked into the spray pipe by means of a spray water pump . Sprayed on the outer surface of the cooling coil, evaporating the heat generated by the fluid through the cooling tube wall, so that the temperature of the fluid can be reduced.
At the same time, by the suction of the fan, so that the air flow through the cooling coil laterally, so not only can strengthen the cooling coil on the outer surface of the heat, but also can take away the evaporation of water vapor to accelerate the water Evaporation, improve the cooling effect.
Features:
Can be modular assembly, to meet the needs of each water;
Low operating costs;
The fluid in the closed cooling tower is a closed cycle to ensure the cleanliness of the fluid;
Sprinkler water circulation less water, saving water resources;
Almost all the fluid flow in the tube, only a small amount of spray water outside the tube, therefore, the noise is very low, with significant environmental benefits.
